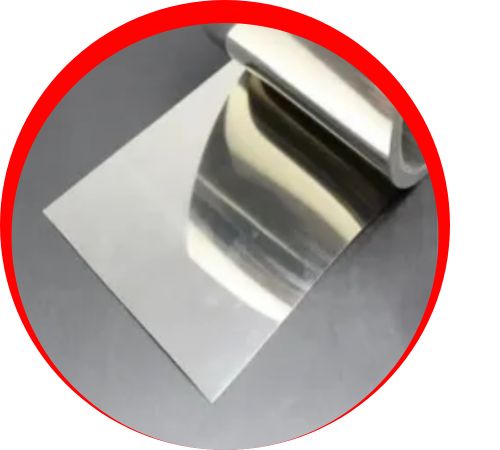

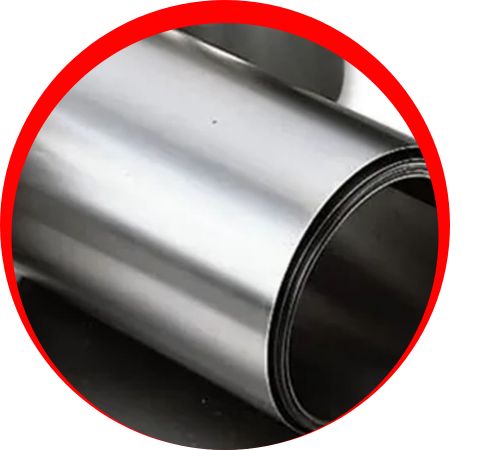

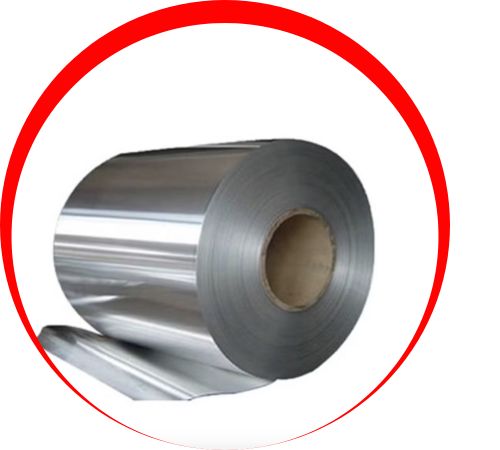

Chanathip Nickel Alloys and Plates is a trusted maker and exporter of Alloy C263 Foil in Bangkok, Thailand. Due to its superior high-temperature strength and oxidation resistance, Alloy C263 is a precipitation-hardening nickel-cobalt-chromium alloy chiefly used in aerospace and gas turbine applications. Our foils are carefully rolled to close tolerances and conform to ASTM B564 and equivalent specifications. Chanathip provides Alloy C263 foils of different thicknesses and widths appropriate for thermal shielding, brazing, insulation, and critical sealing components for harsh environments.
Alloy C263 consists of nickel (to 55%), cobalt (20%), chromium (20%), molybdenum, titanium, and aluminum. It has high-temperature strength and resistance to oxidation to 1000°C. The alloy shows tensile strength of 825 MPa, yield strength of 620 MPa, and elongation of 25%. The material is age-hardenable and has good creep life and weldability, and it is suitable for parts that are exposed to long periods of heat.
| Standard Specification : | AMS 5872 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Alloy C263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Material | Temp °C | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HRC |
|---|---|---|---|---|---|
| Alloy C263 Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Alloy C263 Foil in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Alloy C263 Foil is commonly employed in aerospace applications including turbine blades, combustion chambers, and exhausts. In power generation, it is utilized for insulation in high temperatures, gaskets, and thermal protection in gas turbines. It also finds use in the automotive industry and industrial furnace industries in heat shields and exhaust components. Chanathip’s C263 Foils with high performance provide dependable service under harsh mechanical and thermal stresses, thus being suitable for precision-engineered components in harsh environments.
