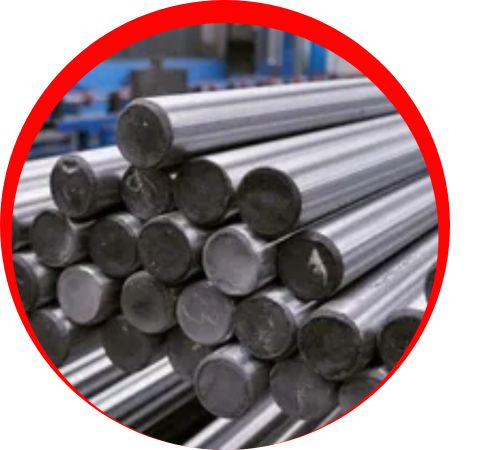

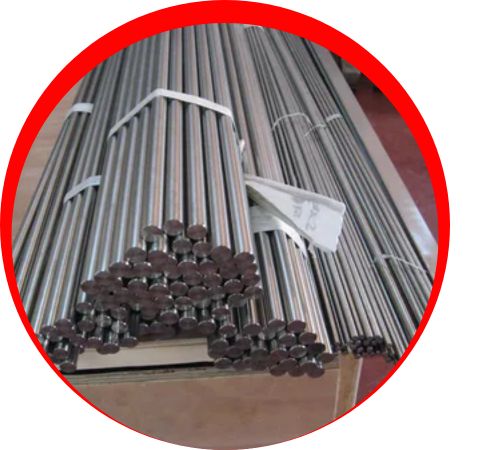

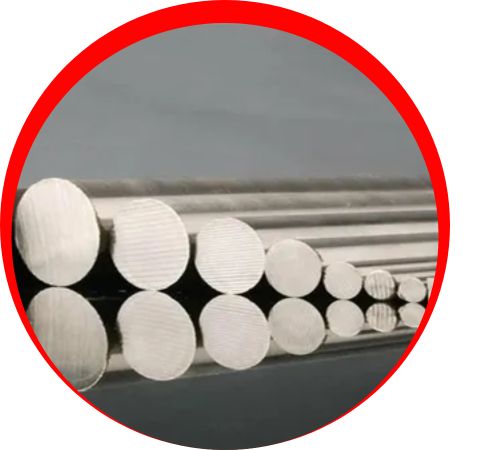

Chanathip Nickel Alloys & Plates of Bangkok also manufactures Duplex Stainless Steel S32205 bars, often considered equivalent to S31803/2205 but with tighter control on certain elements. These bars are available in similar shapes: round, square, and flat, with diameters up to approximately 200 mm. They come with a high finish, certified heat treatment, and comply with ASTM, EN, and ASME standards. We focus on producing bars that provide slightly better corrosion resistance and material consistency for customers needing improved performance in more aggressive chemical and marine environments.
| Specifications | : | ASTM A276, ASME SA276 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | : | 6 mm to 120 mm. |
| Diameter | : | 6mm to 350mm Diameter |
| Thickness | : | 100 to 6000 mm Length |
| Tolerance | : | +/-0.2mm |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | S32205 |
| Density (g/cm 3) | 7.805 |
| Density (lb/in 3) | 0.285 |
| Melting Point (°C) | 1420 – 1465 |
| Melting Point (°F) | 2588 – 2669; |
| UNS S32205 | Ni | Cr | Mo | Mn | Si | C | N | S | P | Fe |
| min | 4.5 | 22.0 | 3.0 | – | – | – | 0.14 | – | – | – |
| max | 6.5 | 23.0 | 3.5 | 2.0 | 1.0 | 0.03 | 0.2 | 0.02 | 0.03 | Balance |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Duplex Steel S32205 Bars in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
S32205 bars are used in situations requiring slightly greater corrosion resistance compared to standard S31803. They are suitable for exposed marine structures, environments with higher chloride stress, and chemical processing equipment that handles aggressive media. These bars are also used in components for desalination plants and offshore or subsea structural parts. Other suitable applications include shafts, fastener blanks, valve bodies, pump shafts, pipe connectors, welded assemblies, and other fabricated pieces. The balance of strength and corrosion resistance makes this alloy appealing for industries like oil and gas, chemical, water treatment, marine engineering, and pulp and paper.
