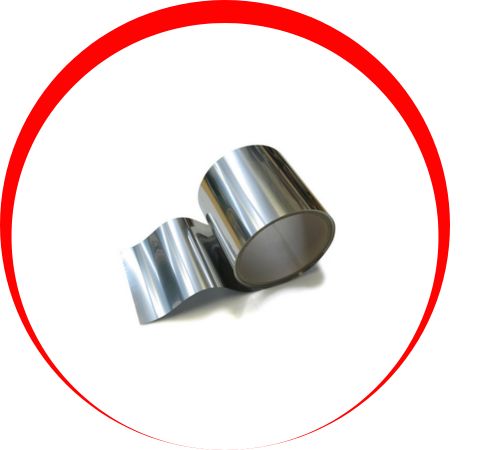

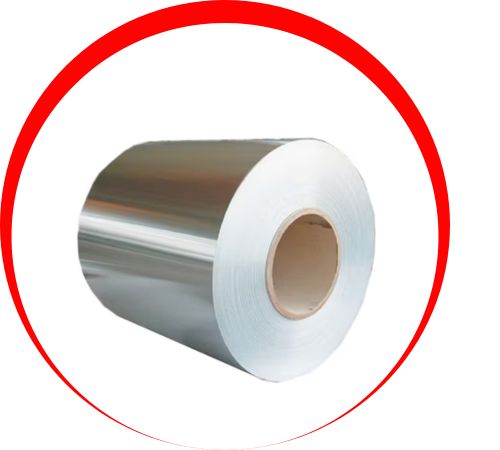

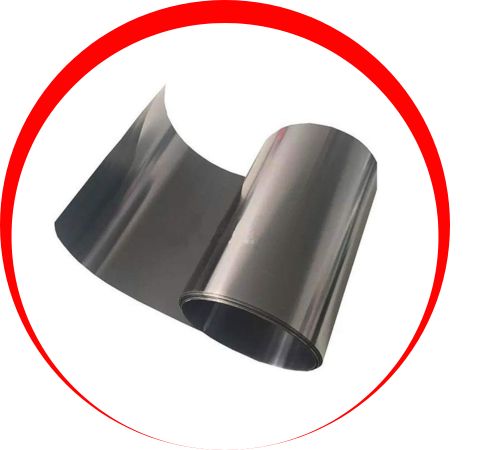

Chanathip Nickel Alloys and Plates, based in Bangkok, Thailand, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Rene 41 Foils. These foils are specifically crafted to thrive in extreme environments where exceptional heat resistance, strength, and durability are a must. Renowned for their outstanding oxidation and corrosion resistance, Rene 41 Foils excel in high-temperature and high-stress situations. Chanathip is committed to precision manufacturing and upholding international quality standards, ensuring that their foils meet the rigorous demands of industries like aerospace, power generation, chemical processing, and defense, where reliability and performance are non-negotiable.
Rene 41 Foils are primarily made of nickel, featuring notable amounts of chromium (18–20%), cobalt (10–12%), and molybdenum (9–10%), along with smaller quantities of titanium and aluminum that boost strength and oxidation resistance. This nickel-based superalloy maintains its impressive mechanical properties even after extended exposure to high temperatures. In terms of mechanics, Rene 41 Foils offer excellent tensile strength, high creep resistance, fatigue resistance, and remarkable stress rupture performance. Their hardness, toughness, and thermal stability make them perfect for demanding, high-temperature applications.
| Standard Specification : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic Sheet and Plates in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
| Grade | UNS | Workstoff | AMS | GE |
| Rene 41 | N07041 | 2.4973 | AMS 5545, AMS 5712, AMS 5713, AMS 5800 | GE B50TF109, GE B50TF76 |
These foils find extensive use in industries that need lightweight yet robust materials capable of enduring extreme heat and corrosive environments. In aerospace, they are utilized for turbine engine components, afterburners, and exhaust systems. The power generation industry employs them in combustion chambers, heat exchangers, and high-performance gas turbines. In chemical processing, they are essential in furnaces, reactors, and high-temperature equipment that come into contact with aggressive chemicals. The defense and marine sectors also depend on them for critical applications. With their unique blend of strength, durability, and heat resistance, Rene 41 Foils are truly indispensable in advanced engineering.
