Chanathip Nickel Alloys, a leading Bangkok-based manufacturer and supplier, is proud to provide Titanium Grade 5 Tube Fittings specifically for high-performance use. Famous for their outstanding strength-to-weight ratio, high corrosion resistance, and durability, these fittings are relied upon in the aerospace, marine, chemical processing, and power generation industries. Made with precision and compliance with global quality standards, our Titanium Gr 5 Tube Fittings ensure consistent performance even in the most demanding conditions. Committed to innovation, reliability, and customer satisfaction, Chanathip Nickel Alloys offers custom solutions that provide efficiency and safety in numerous challenging applications.
Titanium Grade 5 Tube Fittings (Ti-6Al-4V) consist of about 90% titanium, 6% aluminum, and 4% vanadium. This alloy has remarkable mechanical strength, light weight, and high corrosion resistance. With tensile strength of about 930 MPa and density of 4.43 g/cm³, Titanium Gr 5 offers an excellent strength-to-weight ratio. It also offers better fatigue resistance, good weldability, and resistance to severe temperatures. These characteristics render Titanium Gr 5 Tube Fittings extremely durable and versatile, guaranteeing reproducibility in harsh and high-stress industrial applications.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |

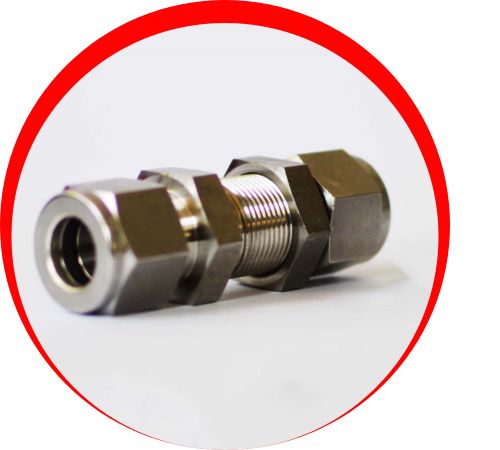

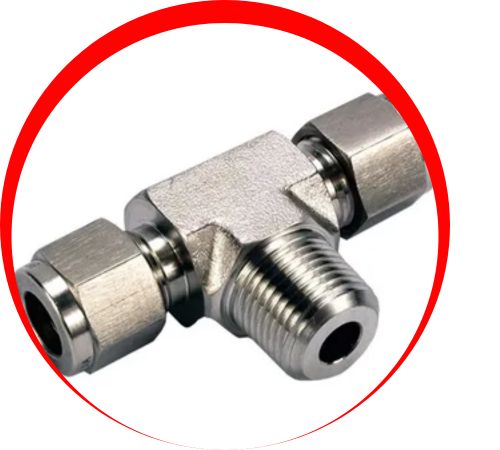

| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Grade 5 Tube Fittings in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Grade 5 Tube Fittings find extensive application in various industries where high strength, corrosion resistance, and light weight are required. In the aerospace sector, they find application in fuel systems, hydraulic lines, and structural assemblies, saving weight without weakening. They are best in the marine industry for use in seawater systems, offshore platforms, and ship construction due to their ability to resist saltwater corrosion. They are used in the chemical processing industry to manage aggressive chemicals and high-pressure systems. They are also useful in medical devices and surgical instruments due to their biocompatibility, and their durability and resistance to fatigue apply to high-performance automotive and sporting goods production.
