Chanathip Nickel Alloys & Plates, located in Bangkok, Thailand, is a top manufacturer and supplier of high-performance nickel‑chromium‑molybdenum alloys. Our facility focuses on producing high-quality filler materials, rods, wires, electrodes, and coated consumables. With modern production lines, strict quality control, and ISO certification, we supply to industries worldwide from Bangkok, including metal fabrication, shipbuilding, petrochemical, and power sectors. Our AWS Class ERNiCrMo‑3 MIG/TIG welding wires and rods offer great corrosion and heat resistance, making them suitable for tough service conditions. We ensure that each batch meets strict metallurgical and mechanical standards before shipping.
ERNiCrMo‑3 contains about 60‑65 % nickel, 20‑25 % chromium, 5‑7 % molybdenum, small amounts of iron (up to ~5 %), and trace levels of silicon, manganese, and carbon (≤0.03 %), phosphorus, and sulfur. The alloy melts at a range of about 1375‑1425 °C. The filler material has a tensile strength of approximately 620‑750 MPa, elongation of 35‑45 %, and excellent toughness even at low temperatures. It shows remarkable resistance to chloride stress corrosion cracking, pitting, and crevice corrosion in both reducing and oxidizing environments, along with good weldability in MIG and TIG processes.
| Classification | AWS A5.14, ERNiCrMo-3 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |

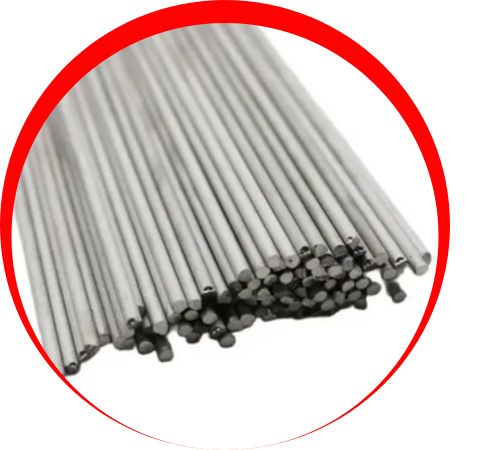

| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERNiCrMo-3 MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Fe | P | S | Si | Cu | Ni | Al | Ti | Cr | Nb+Ta | Mo | Other |
| 0.1 | 0.5 | 5.0 | 0.02 | 0.015 | 0.5 | 0.5 | 58 | 0.4 | 0.4 | 20.0-23.0 | 3.15-4.15 | 8.0-10.0 | 0.5 |
| AWS Class: ERNiCrMo-3 | Certification: AWS A5.14/A5.14M:2009 |
| Alloy: ERNiCrMo-3 | ASME SFA A5.4 |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ERNiCrMo-3 MIG and TIG Filler Welding Wire and Rod in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
ERNiCrMo‑3 MIG/TIG wire and rod are commonly used for welding superalloy and corrosion-resistant parts in chemical processing plants, offshore oil and gas platforms, and desalination plants. Key applications include cladding or joining components exposed to seawater, sour gas, and high temperatures, such as heat exchangers, flanges, pressure vessels, and piping. It is also used in the nuclear industry for reactor components, in geothermal plants, and in flue gas desulfurization units. The material’s resistance to oxidation and crevice corrosion makes it suitable for furnace parts, gas turbine components, as well as pumps and valves in harsh environments.
