Home > Duplex Steel > Duplex Steel 2205 Wire
Chanathip Nickel Alloys & Plates is a leading manufacturer of Duplex Steel 2205 wire in Bangkok, Thailand. We provide premium-grade wire products for industrial and commercial use. Our 2205 wires are available in several conditions, including soft annealed, hard drawn, and spring hard, with high precision and consistent quality. Our wires meet ASTM A276, ASTM A580, and other global specifications. Manufactured using advanced cold working and annealing processes, Duplex 2205 wires present an optimal mix of strength, ductility, and corrosion resistance. They are perfect for marine, chemical, and structural applications that require durability and performance in harsh environments.
Duplex 2205 wire contains around 22% chromium, 5–6.5% nickel, 3% molybdenum, and 0.15–0.20% nitrogen. This alloy provides excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. Mechanical properties include yield strength exceeding 450 MPa, tensile strength between 620 and 700 MPa, elongation of 25% or more, and hardness of 290 HB or less. Cold-drawn versions can achieve higher tensile strengths while remaining flexible. The microstructure ensures long-term structural integrity and resistance to metal fatigue. Duplex 2205 wire performs reliably in high-pressure, corrosive, and elevated-temperature applications.
| Specifications | : | ASTM A276 ASME SA276 |
| Dimensions | : | ASTM, ASME |
| Thickness | : | 10mm to 100mm |
| Diameter | : | 100 mm To 6000 mm |

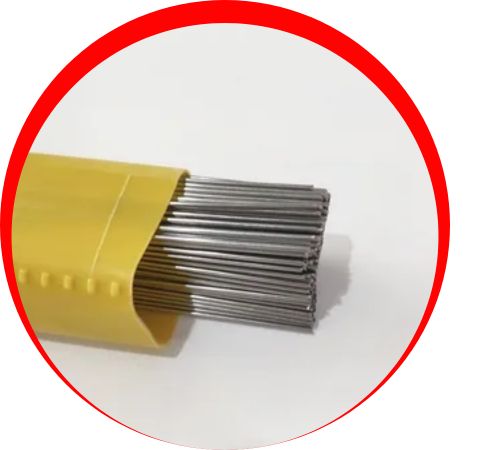

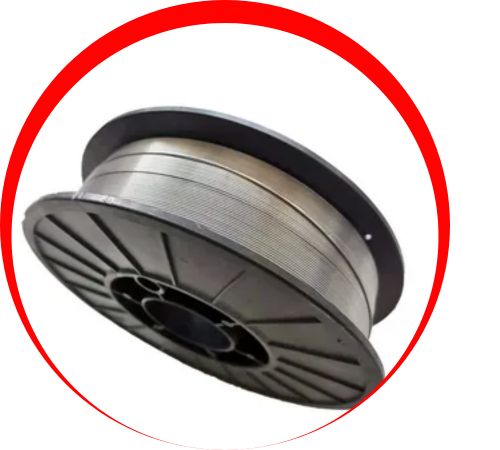

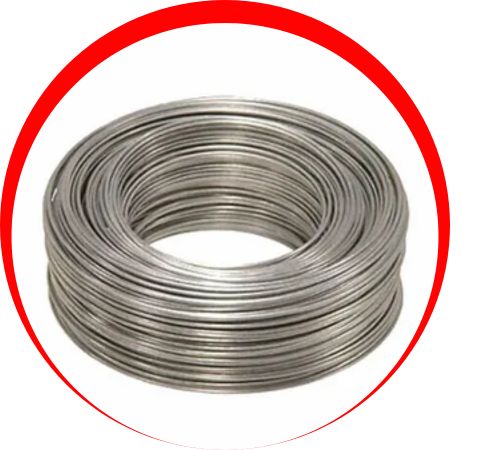

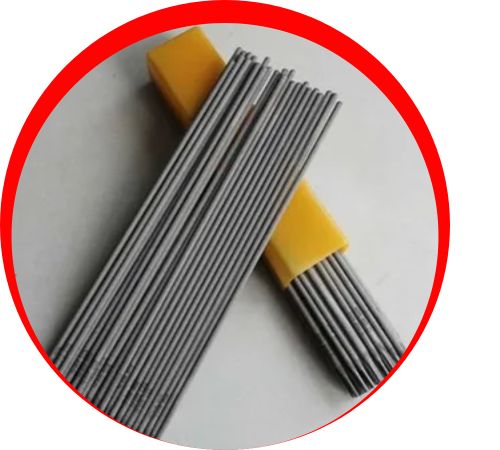

| Specialize | : | Wire, Filler Wire, Coil Wire |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| S31803 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.010 max | 21.0 – 23.0 | 4.5- 6.5 | 2.5 – 3.5 | 0.08 – 0.20 |
| 2205 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.010 max | 22.0 – 23.0 | 4.5- 6.5 | 3.0 – 3.5 | 0.14 – 0.20 |
| Tensile Strength | 650 -850MPa |
| Elongation (Min) | 30 % |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Duplex Steel 2205 Wire in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
