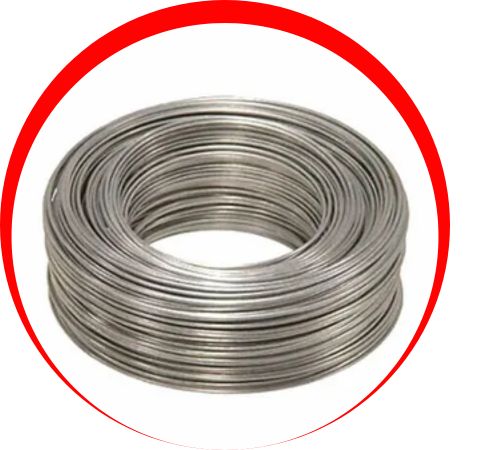

Chanathip Nickel Alloys and Plates is a top manufacturer and supplier of Duplex Steel S31803 Wire in Bangkok, Thailand. Our premium wires are made to be used in applications that demand exceptional strength and great corrosion resistance, particularly in chloride environments. We provide S31803 wires in various forms—spools, coils, straight lengths, and custom sizes—according to your industrial requirements. Thanks to its high weldability, formability, and resistance to cracking, Chanathip’s Duplex Steel Wire is best suited for fabrication, structural components, and chemical process systems in numerous industries throughout Thailand.
Duplex Steel S31803 has 21–23% chromium, 4.5–6.5% nickel, 2.5–3.5% molybdenum, and nitrogen content. The duplex structure in balanced proportions provides very good resistance to general corrosion, pitting, and stress corrosion cracking. Mechanical properties are tensile strength of 620 MPa, yield strength of 450 MPa, and elongation of 25%. S31803 wire does not lose mechanical properties even under conditions of high temperature and pressure, and it has high fatigue strength and long life under dynamic loading.
| Specifications | : | ASTM A276 ASME SA276 |
| Dimensions | : | ASTM, ASME |
| Thickness | : | 10mm to 100mm |
| Diameter | : | 100 mm To 6000 mm |

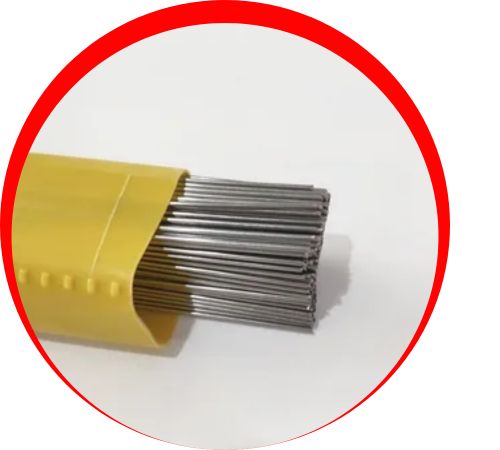

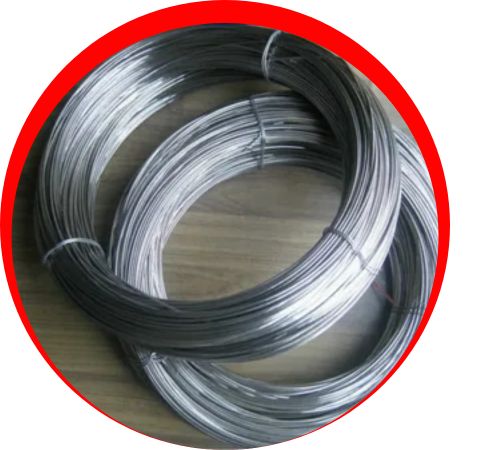

| Specialize | : | Wire, Filler Wire, Coil Wire |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| S31803 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.010 max | 21.0 – 23.0 | 4.5- 6.5 | 2.5 – 3.5 | 0.08 – 0.20 |
| S32205 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.010 max | 22.0 – 23.0 | 4.5- 6.5 | 3.0 – 3.5 | 0.14 – 0.20 |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S31803 / S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Duplex Steel S31803 Wire in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.

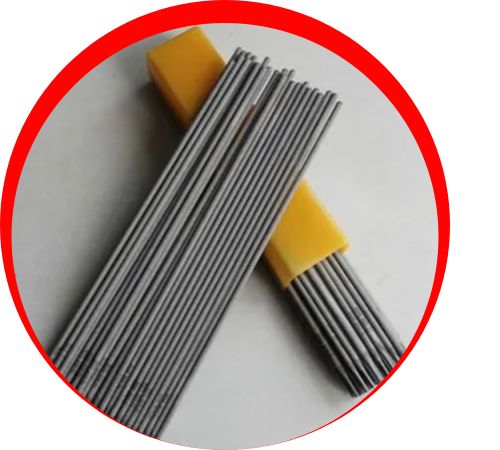

Duplex Steel S31803 Wire is extensively applied across various chemical processing, marine, pulp and paper, oil and gas, and pollution control industries. It can be appropriately applied in wire mesh fabrication, welding electrodes, springs, conveyor belts, filters, and structural reinforcement. Because of its great resistance to chloride stress corrosion, it’s widely applied in offshore platforms, heat exchangers, and water treatment facilities. Chanathip’s wires have a good strength, corrosion resistance, and reliability of performance in harsh and demanding conditions.
