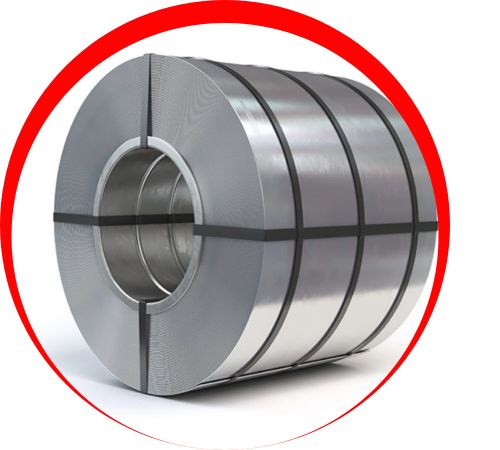

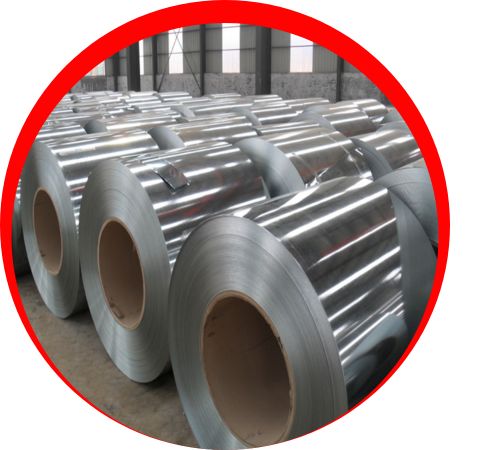

Chanathip Nickel Alloys and Plates, a prominent manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality Monel 400 Coils that are crafted to meet the rigorous demands of various industries. These coils are highly regarded for their exceptional corrosion resistance, durability, and impressive strength, especially in marine, chemical, and oil and gas settings. Produced in line with international standards, Monel 400 Coils promise reliable performance even under extreme pressure and temperature conditions. With a commitment to quality, timely delivery, and competitive pricing, Chanathip Nickel Alloys and Plates provides trustworthy nickel-copper alloy products for clients both locally and globally.
Monel 400 Coils are mainly made up of nickel and copper, which together offer remarkable resistance to seawater, acids, and alkalis. This alloy showcases excellent mechanical properties, including high tensile and yield strength, good ductility, and outstanding toughness. It also boasts superior resistance to stress-corrosion cracking and pitting. Monel 400 Coils maintain their structural integrity across a wide temperature range, making them incredibly versatile for demanding applications. Their blend of strength, stability, and corrosion resistance guarantees long-lasting performance in tough industrial environments.
Monel 400 Coils Specifications | ||
| Specifications | ASTM / ASME SB 127 | |
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm | |
| Thickness | 0.1mm to 12 mm Thk | |
| Form | Coils, Foils, Rolls, Plain Coil, Shim Coil, Strip, Flats, Blank (Circle), Ring (Flange) | |
| Finish | Hot rolled Coil (HR), Cold rolled Coil (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. | |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel 400 Coils in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These Monel 400 Coils find extensive use in industries that demand durability and corrosion resistance. In marine applications, they are utilized in seawater piping systems, heat exchangers, and condenser tubes. The oil and gas sector employs them for process equipment, pumps, and offshore structures that are exposed to brine and sour gas. Chemical plants depend on them for equipment that handles acidic and alkaline fluids, while the aerospace industry uses them for components that require fatigue resistance and a strong strength-to-weight ratio. Power generation facilities also take advantage of Monel 400 Coils in condensers, boilers, and feedwater systems, ensuring reliability and a longer service life.
