Chanathip Nickel Alloys, a reliable manufacturer and supplier of Bangkok, Thailand, supplies high-quality Tantalum R05200 Sheets. Renowned for their high purity, outstanding corrosion resistance, and dependability under harsh operating conditions, these sheets are extensively applied in high-performance material-requiring industries. As they are capable of resisting aggressive chemicals and high temperatures, Tantalum R05200 Sheets offer unrivaled durability and effectiveness. They are ideal for niche uses in electronics, aerospace, and chemical processing. At Chanathip Nickel Alloys, we adhere to international standards of stringency to guarantee each sheet to provide uniform quality, providing high-end solutions for your most stringent industrial and technological needs.
Tantalum R05200 Sheets consist of high-purity tantalum with closely controlled interstitial elements, providing enhanced resistance to acids and aggressive chemicals. They possess strength, stability, and ductility even at high temperatures with a very high melting point of 3017°C. The sheets also exhibit good thermal and electrical conductivity, rendering them highly effective in specialized applications. Chemical inertness enhances durability and reliability, while biocompatibility enables applications in sensitive medical procedures. Simple to produce in intricate forms, Tantalum R05200 Sheets are designed to provide lasting performance in the most severe environments.
| Standard Specifications | ASTM B708, ASME SB708 / ASTM F 560 |
| Thickness | 0.5 mm – 30 mm |
| Width | 10mm – 2500mm |
| Length | As Your Required |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

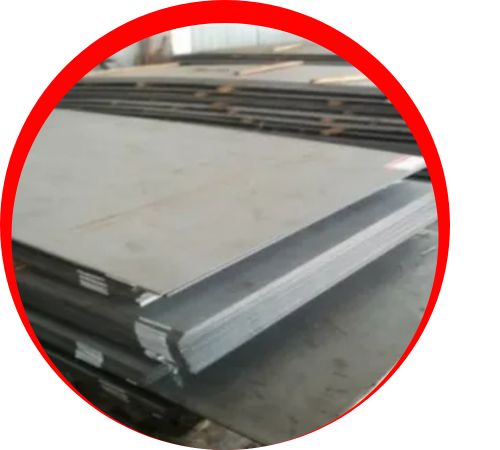

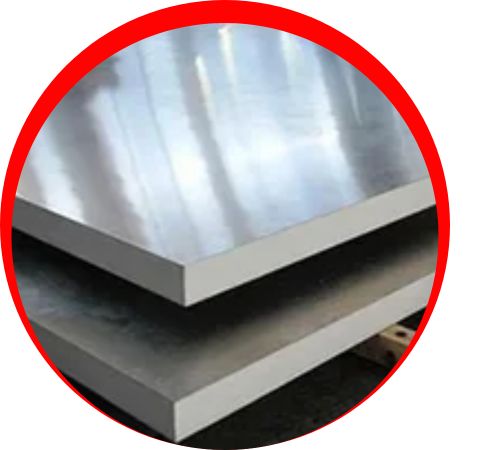

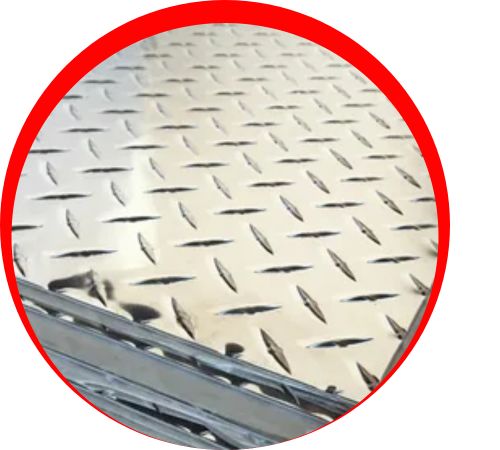

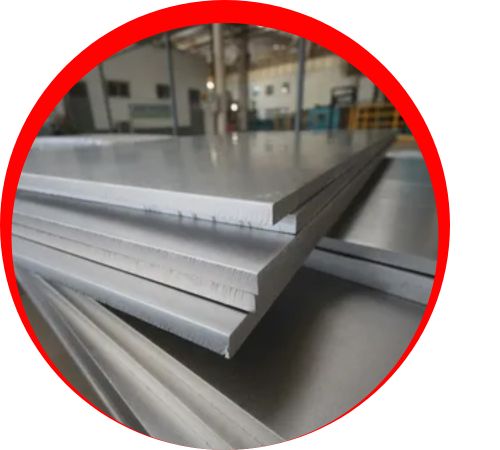

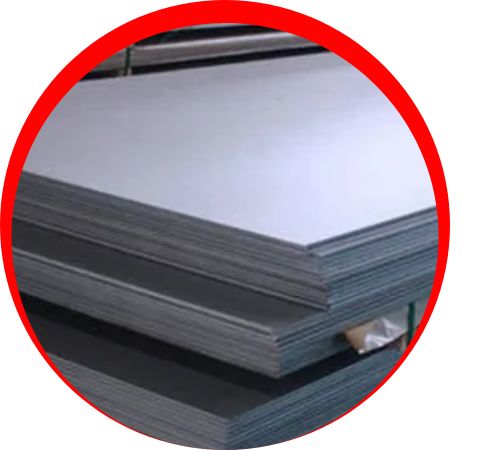

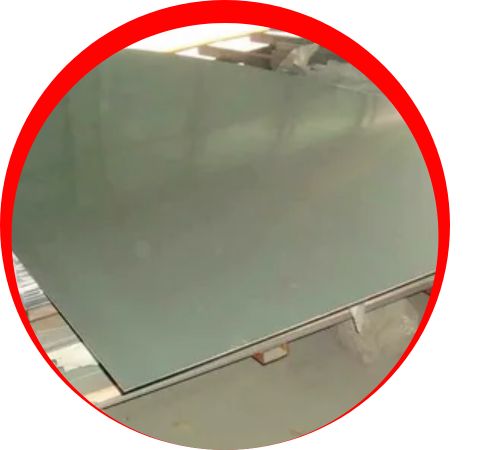

| Types | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Purity | ≥99.9% or 99.95% |
| Grade | R05200, R05400, R05255, R05252, R05240 |
| C | O | N | H | Fe | Mo | Nb | Ni | Si | Ti | W | Ta |
| 0.010 | 0.015 | 0.010 | 0.0015 | 0.010 | 0.020 | 0.100 | 0.010 | 0.005 | 0.010 | 9.0 – 11.0 | Remainder |
| Dimension | Ultimate Tensile Strength, min, psi (MPa) | Yield Strength, min, psi (MPa) (2 % Offset) | Elongation, min, % |
| < 0.125″ (3.175mm) | 70000 (482) | 60000 (414) | 15 |
| ≥0.125″ (3.175mm) | 70000 (482) | 55000 (379) | 20 |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Tantalum R05200 Sheets and Plates in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Tantalum R05200 Sheets have extensive applications in industries requiring tolerance and reliability in harsh environments. They are essential in electronics for making high-performance capacitors, resistors, and semiconductors. The chemical processing industry uses them in reactors, heat exchangers, and corrosive substance-handling equipment. Aerospace uses them in high-temperature structural pieces and superalloys resistant to extreme stress. In medicine, their proven biocompatibility makes them suitable for implants and surgical instruments. Additionally, Tantalum R05200 Sheets are employed in defense, nuclear energy, and advanced research sectors, where consistent performance and longevity are essential for mission-critical operations.
