Chanathip Nickel Alloys, a trusted name in Bangkok, Thailand, specializes in the manufacturing and supply of high-quality Inconel 718 Forged Fittings. Renowned for their exceptional strength, corrosion resistance, and durability, these fittings are ideal for demanding applications across various industries, including aerospace, chemical processing, and marine engineering. At Chanathip Nickel Alloys, we are committed to delivering products that meet the highest standards of quality and reliability, ensuring optimal performance in the most challenging environments.
Inconel 718 Forged Fittings are mainly composed of nickel (50-55%) and chromium (17-21%), with other materials such as iron, niobium, molybdenum etc. These fittings have exceptional mechanical properties, including high tensile strength , excellent fatigue resistance, and outstanding creep rupture strength at temperatures up to 700°C The main advantages of Inconel 718 Forged Fittings are as follows it resists oxidation and corrosion, making it ideal for use in harsh environments including aerospace, marine and medical industries
Specifications : ASTM B564 / ASME SB564
Dimensions : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB (Socketweld & Screwed-Threaded)

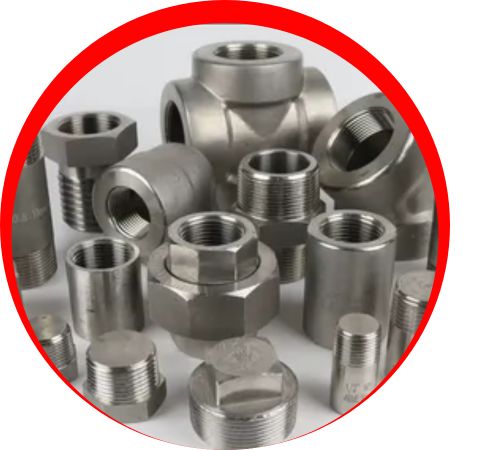

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Mn | Si | P | S | Cr | Cu | Ni | Fe |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | – | 0.015 max | 17 – 21 | 0.30 max | 50.0-55.0 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.2 g/cm3 | 1350 °C (2460 °F) | Psi –1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 718 Forged Fittings in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 718 Forged Fittings are widely used in applications requiring high strength and overheating resistance, such as aerospace, chemical processing, and power generation These fittings are important in areas where durability, resistance to oxidation, corrosion and creep are important . It is commonly used in turbine engines, nuclear reactors and high pressure systems to ensure reliable operation under extreme conditions. The ability to maintain integrity in both cryogenic and high temperature applications makes them desirable in critical applications.
