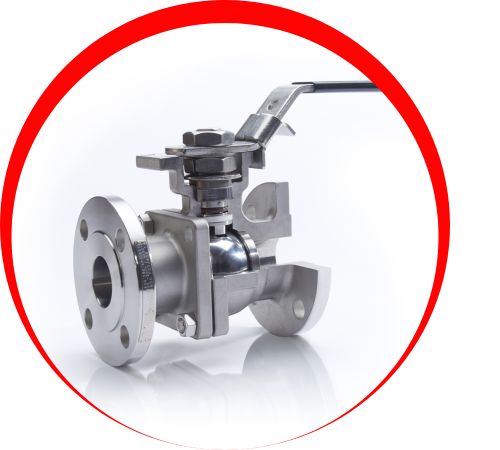

Chanathip Nickel Alloys and Plates, based in Bangkok, Thailand, stands out as a top manufacturer and supplier of high-performance Super Duplex Ball Valves. These valves are crafted for durability and reliability, boasting impressive resistance to corrosion, stress cracking, and wear, making them perfect for tough and demanding environments. With a strong focus on precision engineering and a commitment to international quality standards, Chanathip guarantees that their Super Duplex Ball Valves consistently perform at a high level. They’ve earned a solid reputation for providing leak-free operations in critical applications across various industries, including oil & gas, chemical processing, marine, and power generation.
Super Duplex Ball Valves are made up of about 24–26% chromium, 6–8% nickel, 3–5% molybdenum, and nitrogen, which greatly boosts their corrosion resistance and strength. Their unique duplex microstructure, featuring both austenite and ferrite, gives them exceptional toughness and durability. On the mechanical side, these valves showcase a tensile strength of around 800 MPa, a yield strength close to 550 MPa, and remarkable resistance to fatigue and stress corrosion cracking. With high hardness, impressive impact strength, and excellent thermal stability, they’re well-suited for extreme operating conditions where reliability and a long service life are crucial.
| VALVES SIZE | 6 MM TO 50 MM and 1/8″ TO 2″ |
| STANDARD | ASME B 16.10, BS1414/API 600, ASME B 16.5, BS EN 12266-1/API 598, ASME B 16.34, ASTM A890 4A, ASME B 16.25 |

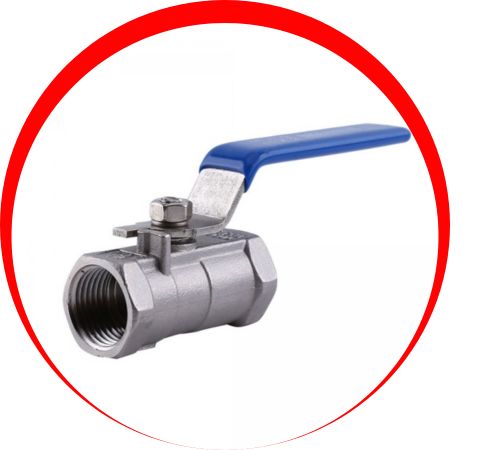

| CONNECTION | TUBE END, THREADED, SOCKET WELD, BUTT WELD, FLANGED, WELD NIPPLE, SAE |
| THREAD | METRIC, BSPP, NPT, JIC, BSPT, UNF |

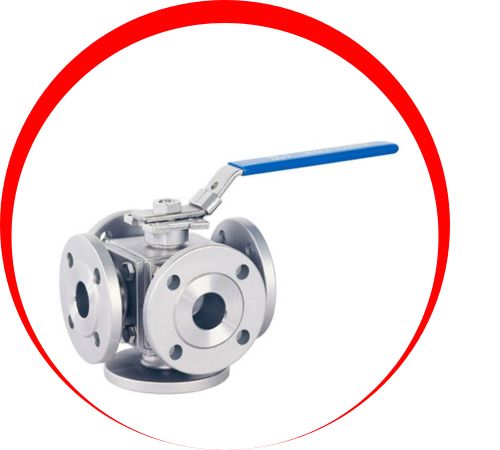

| FUNCTION | 2 , 5 , 4 , 3 WAY, |
| MATERIAL OF SEAL RING | PVDF, DELRIN, GRAPHITE, PTFE, PEEK, |
| PRESSURE RATING | 15000 , 3000, 1500 , 10000, 6000 , 20000 PSI |
| TEMPERATURE OF MEDIA | (-120* C – 500*C ) AS LIKE PRESSURE RANGE |
| STANDARD | DIN , ISO , API , ANSI , AWWA , ASME , MSS |
| MEDIA | AIR, CHEMICAL, GAS, WATER, STEAM, HOT WATER , HYDRAULIC OIL, COLD WATER, SEA WATER |
| TYPE OF BODY | BAR STOCK |
| EQUIVALENT BRANDS | OLIVER VALVES, PARKER, SWAGELOK, HAMLET, DK-LOK, HOKE |
| PACKING DETAILS | WOODEN PALLET, BOX PACKING |
| Grade | S32760 | S32750 |
| Mn | 1.00 max | 1.20 max |
| Fe | 57.61 min | 58.095 min |
| C | 0.05 max | 0.030 max |
| Si | 1.00 max | 0.80 max |
| S | 0.010 max | 0.020 max |
| P | 0.030 max | 0.035 max |
| Cr | 24.00 – 26.00 | 24.00 – 26.00 |
| Ni | 6.00 – 8.00 | 6.00 – 8.00 |
| Mo | 3.00 – 4.00 | 3.00 – 5.00 |
| N | 0.20 – 0.30 | 0.24 – 0.32 |
| Melting Point (°C) | 1350 |
| Density (lb/in 3) | 0.281 |
| Density (g/cm 3) | 7.8 |
| Melting Point (°F) | 2460 |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Super Duplex Ball Valve in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Super Duplex Ball Valves find extensive use in industries that demand robust flow control solutions in aggressive settings. In the oil & gas sector, they’re utilized in offshore platforms, subsea systems, and pipelines. The chemical and petrochemical industries rely on them in processing plants, reactors, and high-pressure systems. They’re also commonly found in desalination plants, marine applications, and power generation facilities due to their ability to withstand chloride-induced corrosion. Moreover, their durability and reliability make them vital for the pulp & paper industry and other demanding operations that require safe and efficient flow.
