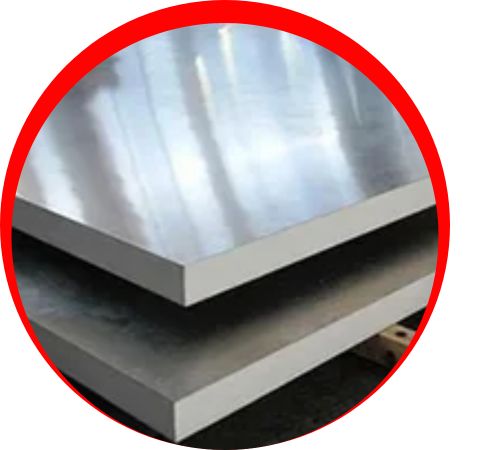

Chanathip Nickel Alloys is a trusted manufacturer and supplier of Waspalloy Sheets and Plates in Bangkok, Thailand. Known for their exceptional high-temperature strength, corrosion resistance, and reliability, these advanced nickel-based alloys are designed for extreme operating conditions. Waspalloy sheets and plates are commonly used in aerospace, power generation, and chemical processing, where durability and stability are crucial. From turbine blades and combustion chambers to industrial furnaces and key chemical equipment, our products are made to perform in the toughest environments. With a focus on quality, precision, and timely delivery, Chanathip Nickel Alloys is your reliable source for Waspalloy solutions.
Waspalloy Sheets and Plates are made of about 58 to 62% Nickel, 18 to 22% Chromium, 3.5 to 5% Cobalt, 1.2 to 2% Molybdenum, 2 to 3% Titanium, and 1.2 to 2% Aluminum, along with trace elements of Boron, Carbon, and Zirconium. This balanced mix offers great resistance to oxidation and stress corrosion. Mechanically, Waspalloy shows tensile strengths ranging from 965 to 1240 MPa and yield strengths from 725 to 1035 MPa, with elongation between 10 and 20%. Its excellent creep resistance and fatigue strength stay reliable at temperatures up to 980°C, making it perfect for high-stress and high-temperature industrial and aerospace uses.
| Specification : | AMS, AMS, API |

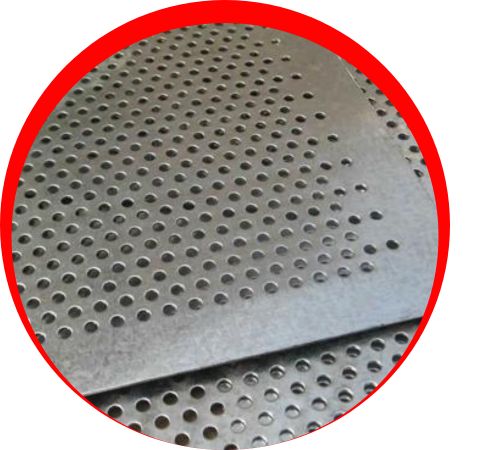

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |

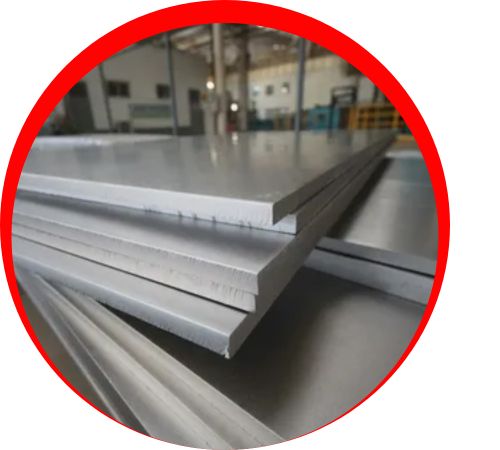

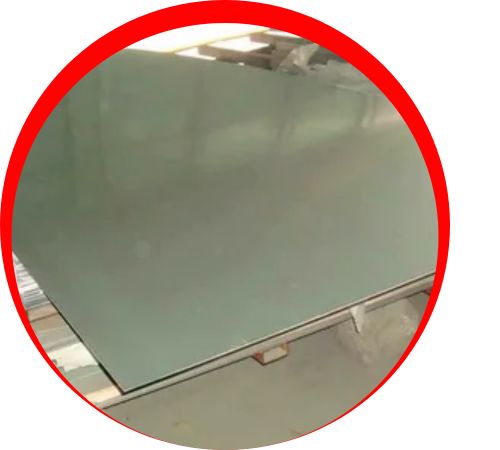

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Waspaloy (UNS-N07001) |
| STANDARD | UNS | Material No |
| Waspaloy | N07001 | 2.4654 |
| Waspaloy | Cr | Ni | Mo | Co | Al | Ti | B | C | Zr | Fe | Mn | Si | P | S | Cu |
| MIN | 18.00 | — | 3.50 | 12.00 | 1.20 | 2.75 | 0.003 | 0.02 | 0.02 | — | — | — | — | — | — |
| MAX | 21.00 | Balance | 5.00 | 15.00 | 1.60 | 3.25 | 0.01 | 0.10 | 0.08 | 2.00 | 0.10 | 0.15 | 0.015 | 0.015 | 0.10 |
| Temperature, °F | Ultimate Tensile Strength, ksi | 0.2% Yield Strength, ksi | Elongation, % | Hardness, Rockwell C |
| 70 | 193 | 132 | 27 | 34-40 |
| 1200 | 173 | 112 | 21 | – |
| 1400 | 140 | 112 | 12 | – |
| 1600 | 79 | 60 | 12 | – |
At Chanathip Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Waspalloy Sheets & Plates in Bangkok, Thailand, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Thailand, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Waspalloy Sheets and Plates are vital in industries that need both heat resistance and high strength. In aerospace, they are crucial for turbine blades, afterburner parts, and combustion chambers, where materials must endure intense thermal and mechanical stress. The power generation sector uses Waspalloy in gas turbines, heat exchangers, and other high-temperature systems. In chemical processing, it is highly valued for reactors, pressure vessels, and equipment dealing with aggressive chemicals. Industrial furnaces and high-performance fasteners also take advantage of Waspalloy’s durability. These various applications showcase its unmatched versatility and importance as a high-performance material in demanding engineering settings.
